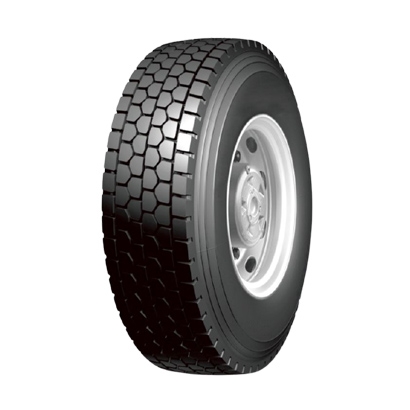

Shoulder heat dissipation design wear-resistant, both bite-resistant and puncture-resistant tread formula; stepped groove wall stone discharge function design; low-life tropical bundle new formula.
The tread block design with transverse grooves helps improve the grip and traction of the tire.
The special steel wire structure improves the load-bearing capacity and the flexure resistance of the tire.
High-speed or first-class highway long-distance fixed load drive wheel.
Size |
PR |
Load Index |
Speed |
Diameter(mm) |
S.W/mm |
T.D/mm |
Rim |
Single Load/Pressure |
Dual Load/Pressure |
| 12R22.5 | 18PR | 152/149 | L | 1092 | 303 | 23.5 | 9.00 | 3550/930 | 3250/930 |
| 295/80R22.5 | 18PR | 152/149 | L | 1060 | 285 | 23 | 9.00 | 3550/900 | 3250/900 |
| 315/80R22.5 | 18PR | 156/152 | L | 1093 | 310 | 22.5 | 9.00 | 4000/850 | 3450/850 |
| 315/80R22.5 | 20PR | 157/154 | J | 1093 | 310 | 22.5 | 9.00 | 4125/900 | 3750/900 |
