SIZE |
BOLT HOLE QTY. |
BOLT HOLE DIA. |
BOLT HOLE TYPE |
P.C.D |
C.B |
OFFSET |
THICKNESS |
MAXLOAD |
TIRE |
| (mm) | (mm) | (mm) | (mm) | (mm) | (KG) | ||||

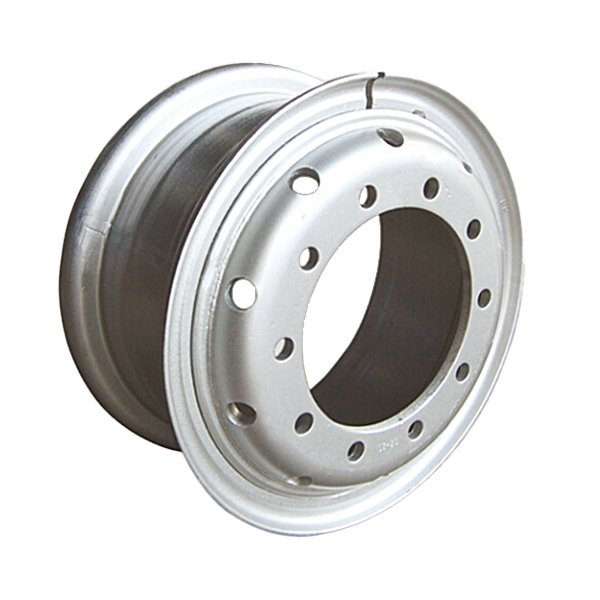

| 8.5-20 | 8 | 26 | 1*45 | 275 | 214 | 175 | 16 | 3800 | 12.00-20 |
| 8 | 26 | 1*45 | 275 | 221 | 175 | 16 | 3800 | ||
| 8 | 32.5 | SR22 | 285 | 221 | 175 | 16 | 3800 | ||
| 8 | 32.5 | SR22 | 275 | 214 | 175 | 16 | 3800 | ||
| 10 | 26 | 1*45 | 335 | 281 | 175 | 16 | 3800 | ||
| 10 | 26 | 1*45 | 285.75 | 220 | 175 | 16 | 3800 | ||
| 10 | 32.5 | SR22 | 285.75 | 222 | 175 | 16 | 3800 |
